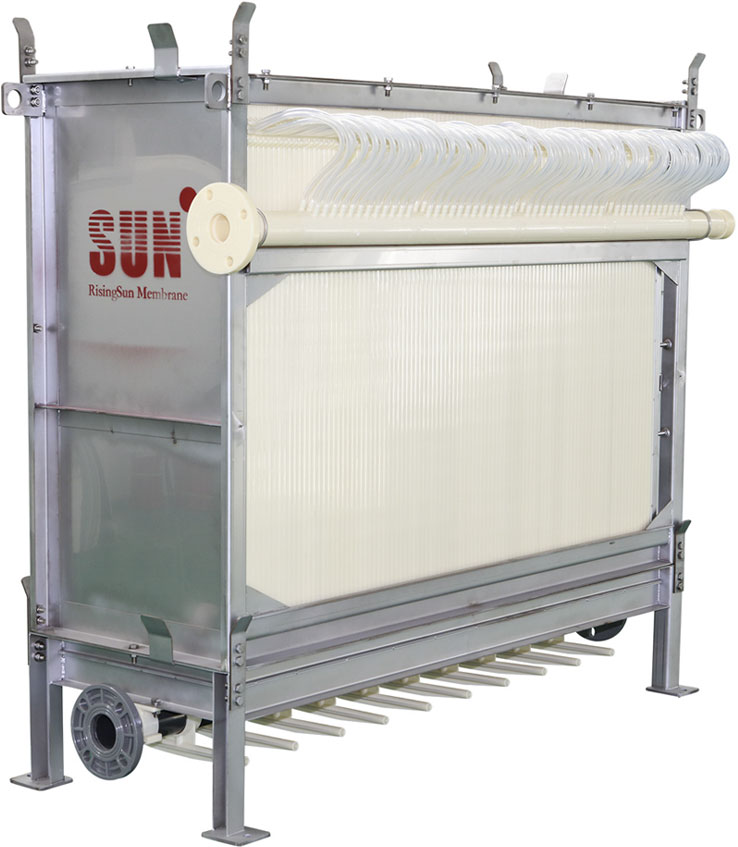

Flat sheet MBR / FMBR

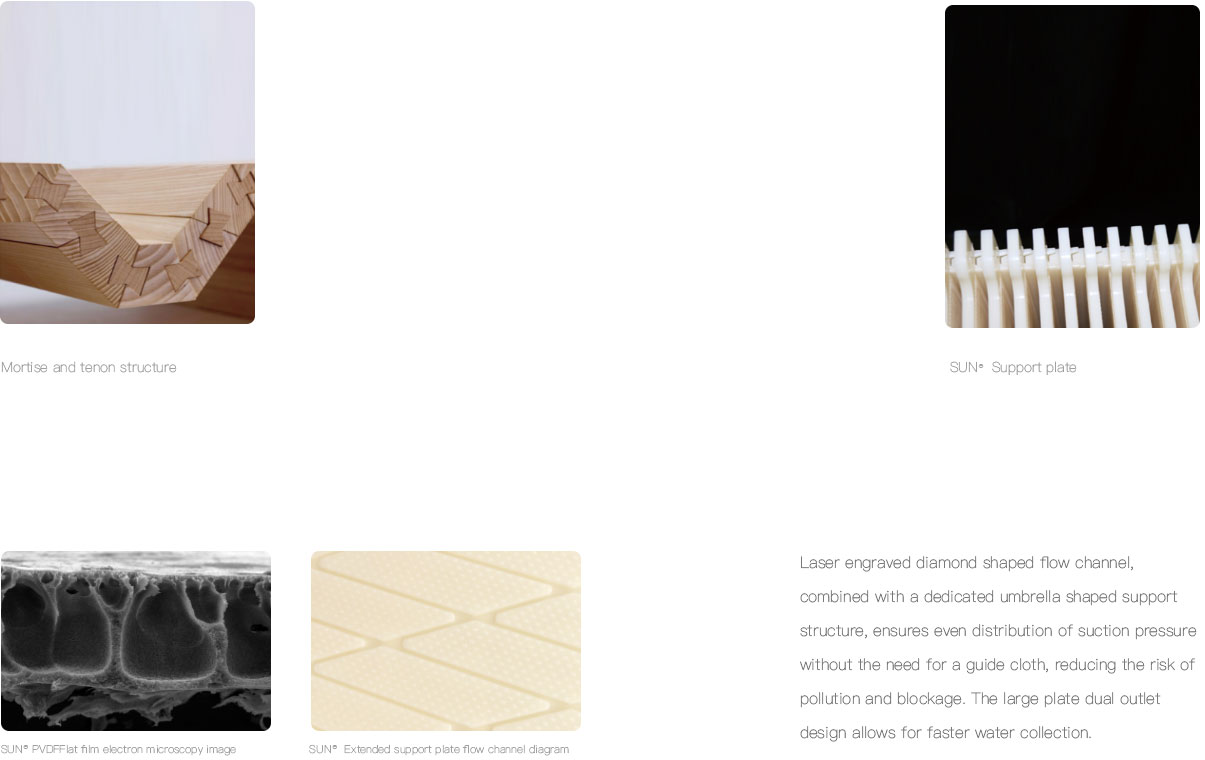

SUN flat sheet membrane is made of PVDF, which has better chemical stability, fouling resistance and mechanical strength. With advanced membrane fabrication technology, we control the membrane pore size around 0.1 um to get a higher water flux and water quality. The mortise and tenon structure is used in the support plate to get a more stable spacing without side panels. The support plate can be installed from top or one side without the limits of the construction site conditions.

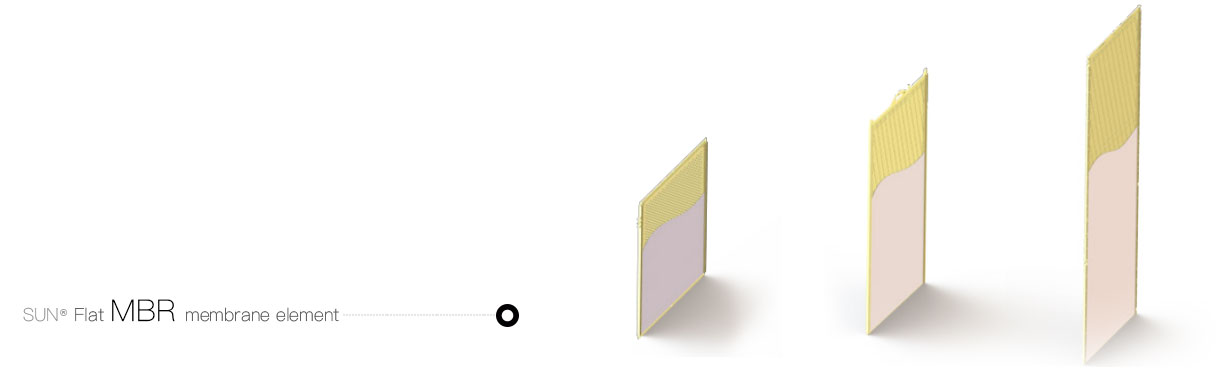

| Items | Short type | Standard type | Long type |
| Model | FMBR50 | FMBR80 | FMBR160 |
| Size(L×W×T)(mm) | 640×510×13 | 1020×510×14 | 1810×512×14 |
| Membrane effective area (m2) | 0.5 | 0.8 | 1.6 |
| Weight (kg) | 1 | 3 | 5 |
| Permeate flux［l/( pc·d) | 200-340 | 320-550 | 640-1100 |
| Membrane material | PVDF | PVDF | PVDF |
| Membrane proe size (μm) | 0.1 | 0.1 | 0.1 |
| Plate material | ABS | ABS | ABS |
| Air flow rate [l/(min·pc)] | ≥8 | ≥ 10 | ≥ 12 |
| PH | 3~12 | 3-12 | 3-12 |
| Output turbidity (NTU) | ＜1.0 | ＜ 1.0 | ＜ 1.0 |
| Output SS (mg/L) | ≤5 | ≤ 1.0 | ≤ 1.0 |
| Chemical cleaning | ~5,000mg/l NaClO | ～ 5,000mg/l NaClO | ～ 5,000mg/l NaClO |

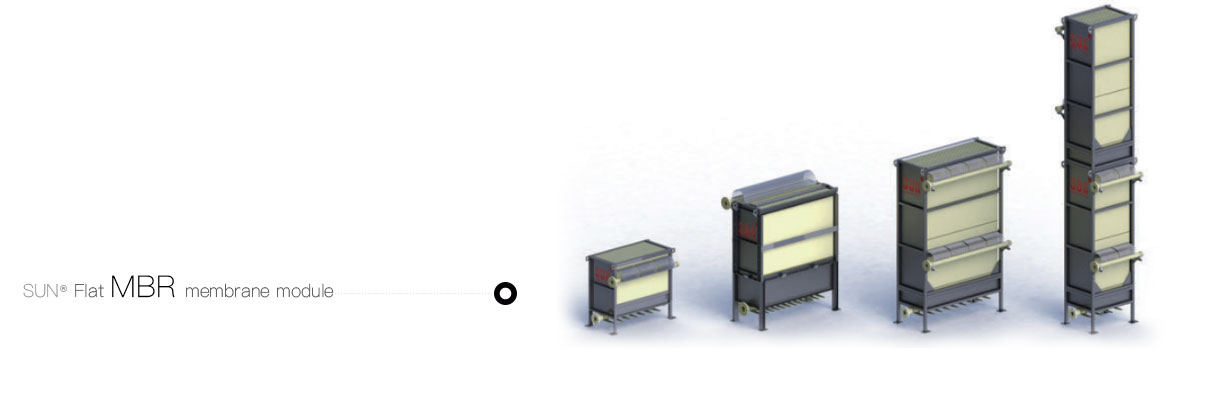

| Items | FMBR50 | FMBR80 | ||
| Model | FMBR50-100 | FMBR50-100-2 | FMBR80-125 | FMBR80-250-2 |
| Permeate flux (m3 /d) | 19-30 | 38-65 | 38-65 | 150-260 |
| Plate qty. (pc) | 100 | 200 | 125 | 500 |
| Membrane area (m2 ) | 50 | 100 | 100 | 400 |
| Size (mm) (L×W×H) | 1530×600×1300 | 1530×600×2000 | 1885×600×1680 | 3720×600×2750 |
| Air flow rate (L/min) | 500 | 800 | 1250 | 3500 |
| Weight (kg) | 180 | 320 | 230 | 900 |
| Items | FMBR160 | FMBR | ||
| Model | FMBR160-50 | FMBR160-125-2 | FMBR80/50-150 | FMBR160/80-125 |
| Permeate flux (m3 /d) | 32-50 | 150-260 | 74-126 | 114-195 |
| Plate qty. (pc) | 50 | 250 | 300 | 250 |
| Membrane area (m2) | 80 | 400 | 195 | 300 |
| Size (mm) (L×W×H) | 830×620×2550 | 2060×600×4500 | 2500×600×2380 | 2060×600×3570 |
| Air flow rate (L/min) | 600 | 1750 | 1600 | 1600 |
| Weight (kg) | 400 | 1700 | 570 | 1000 |
Single-layer components
