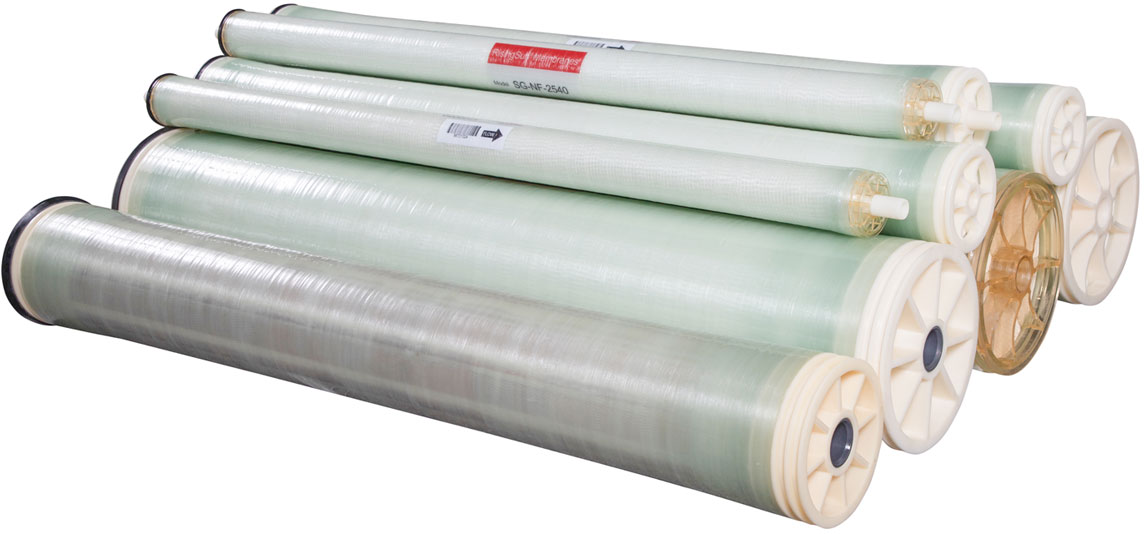

SPIRAL MF MEMBRANE

MF membrane usually serves as a pre-treatment for other separation processes such as ultrafiltration. The typical particle size used for MF membrane ranges from about 0.1 to 1 μm. In terms of approximate molecular weight these membranes can prevent particles such as suspended solids, bacteria, and other macromolecules colloids, and pass through water, inorganic salt, monovalent species, small colloids. Compare to ultrafiltration, MF systems operate at relatively low pressures about 0.3-7 bar.

We supply spiral MF membrane with different membrane material and pore size. They have a compact design and an optimum surface area to volume ratio. The feed channel height can be varied by the thickness of the feed spacer material (from 13 to 120 mil). This helps to adapt the viscosity or the solids content of the liquid. This design feature leads to excellent hydrodynamics in combination with low energy demand. To meet some specialty applications, acid/caustic resistant, fouling resistant or high temperature membrane products are available.

ADVANTAGES:

High thermal and chemical resistance

Imported high quality raw material

Sanitary design without dead space, high resistance to fouling

Simple and economic module replacement

Various choices of module dimensions

High packing density

APPLICATION:

Clarification for fermentation broth in pharmaceutical and biotechnology industry

Clarified lysate Biochemistry

Removal of suspended solids

MBR industry

Pretreatment of RO/NF
