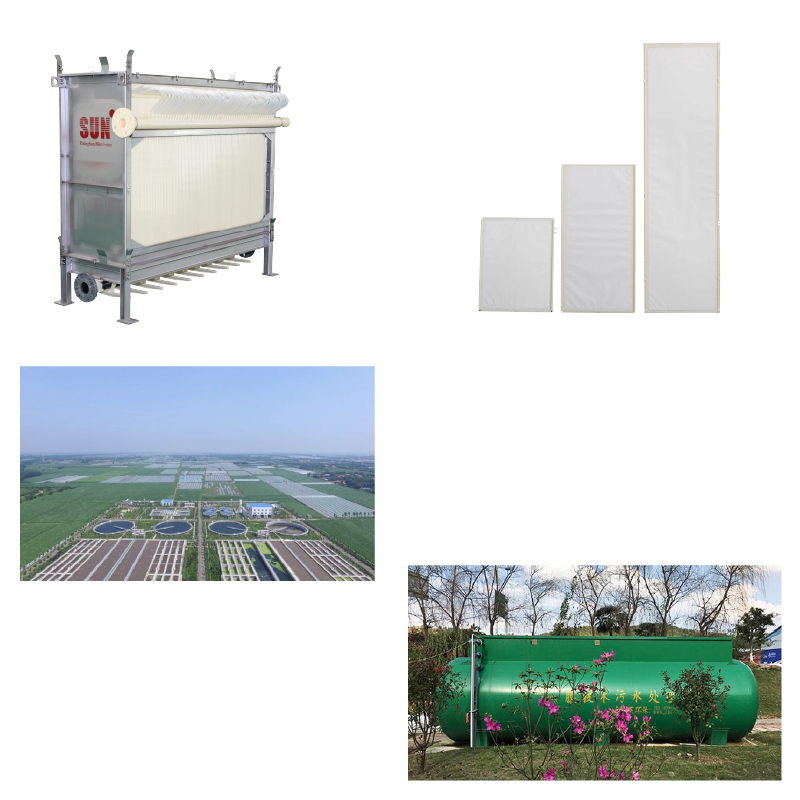

1、Product: Flat sheet MBR / FMBR.
2、Material: PVDF, with excellent chemical stability, fouling resistance and mechanical strength.
3、Pore size: Around 0.1 μm, ensuring high water flux and effluent quality.
4、Structure: Mortise and tenon design on the support plate, enabling stable spacing without side panels.
5、Installation: Flexible installation (top or side-mounted) with no restrictions from site conditions.
Detailed technical documents are available for download.
For custom solutions, please contact our technical team.
Email us at info@risingsunmem.com for expert support.
| Items | Short type | Standard type | Long type |
| Model | FMBR50 | FMBR80 | FMBR160 |
| Size(L×W×T)(mm) | 640×510×13 | 1020×510×14 | 1810×512×14 |
| Membrane effective area (m2) | 0.5 | 0.8 | 1.6 |
| Weight (kg) | 1 | 3 | 5 |
| Permeate flux［l/( pc·d) | 200-340 | 320-550 | 640-1100 |
| Membrane material | PVDF | PVDF | PVDF |
| Membrane proe size (μm) | 0.1 | 0.1 | 0.1 |
| Plate material | ABS | ABS | ABS |
| Air flow rate [l/(min·pc)] | ≥8 | ≥ 10 | ≥ 12 |
| PH | 3~12 | 3-12 | 3-12 |
| Output turbidity (NTU) | ＜1.0 | ＜ 1.0 | ＜ 1.0 |
| Output SS (mg/L) | ≤5 | ≤ 1.0 | ≤ 1.0 |
| Chemical cleaning | ~5,000mg/l NaClO | ～ 5,000mg/l NaClO | ～ 5,000mg/l NaClO |
| Items | FMBR50 | FMBR80 | ||
| Model | FMBR50-100 | FMBR50-100-2 | FMBR80-125 | FMBR80-250-2 |
| Permeate flux (m3 /d) | 19-30 | 38-65 | 38-65 | 150-260 |
| Plate qty. (pc) | 100 | 200 | 125 | 500 |
| Membrane area (m2 ) | 50 | 100 | 100 | 400 |
| Size (mm) (L×W×H) | 1530×600×1300 | 1530×600×2000 | 1885×600×1680 | 3720×600×2750 |
| Air flow rate (L/min) | 500 | 800 | 1250 | 3500 |
| Weight (kg) | 180 | 320 | 230 | 900 |
| Items | FMBR160 | FMBR | ||
| Model | FMBR160-50 | FMBR160-125-2 | FMBR80/50-150 | FMBR160/80-125 |
| Permeate flux (m3 /d) | 32-50 | 150-260 | 74-126 | 114-195 |
| Plate qty. (pc) | 50 | 250 | 300 | 250 |
| Membrane area (m2) | 80 | 400 | 195 | 300 |
| Size (mm) (L×W×H) | 830×620×2550 | 2060×600×4500 | 2500×600×2380 | 2060×600×3570 |
| Air flow rate (L/min) | 600 | 1750 | 1600 | 1600 |
| Weight (kg) | 400 | 1700 | 570 | 1000 |
Single-layer components
