TUBULAR ANODE/CATHODE CELL

Product Features

1、Product: Tubular Anode/Cathode Cell (RisingSun).

2、Function: Acts as the counter electrode and removes solubilizers (usually organic acids) from paint to maintain chemical balance.

3、Key feature: Uses high-quality American ion exchange membrane with low resistance and high permselectivity.

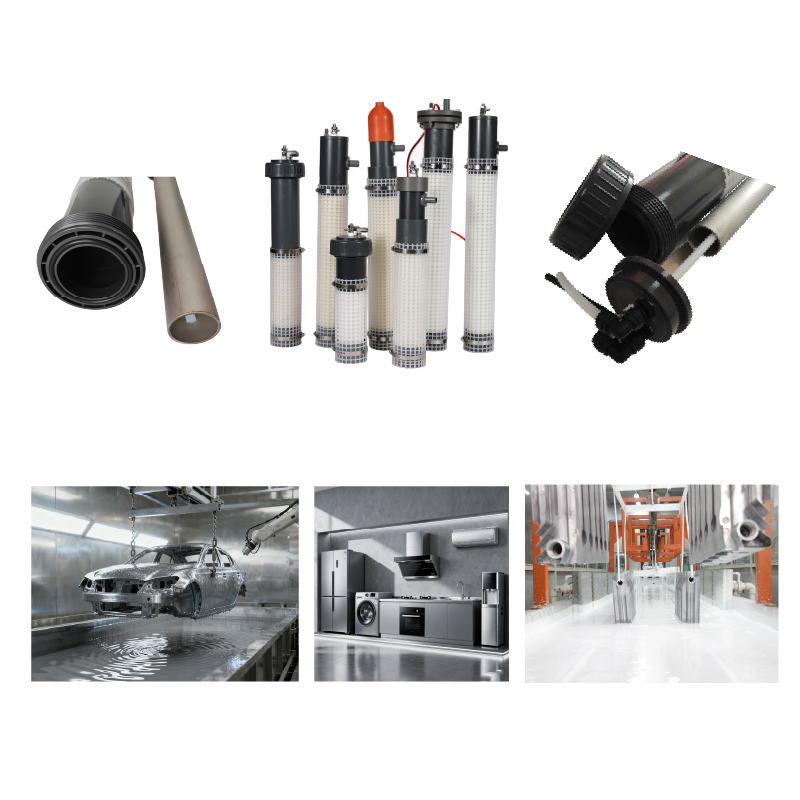

Applications

1、Automobile making.

2、Home appliances.

3、Other industries.

ADVANTAGES：

1、American outstanding quality ion exchange membrane

2、Available in various material of electrode (SS 316L / Ti, Titanium with iridium coated.)

3、Available in various cell type of open, union, flange, bare, etc

4、Integrated high strength support core tube with high porosity

5、Various choices of module dimensions

6、Low resistance, save energy

7、Simple and economic module replacement

Open type feature: - simple design with high cost performance

Union type feature：- resistance to heavy pressure, high cycle efficiency, simple installation

Flange type feature：- corrosion resistance, high cycle efficiency, can be used at bottom of paint tank

Bare type feature：- resistance to heavy pressure with seamless Titanium with iridium coated electrode, corrosion resistance

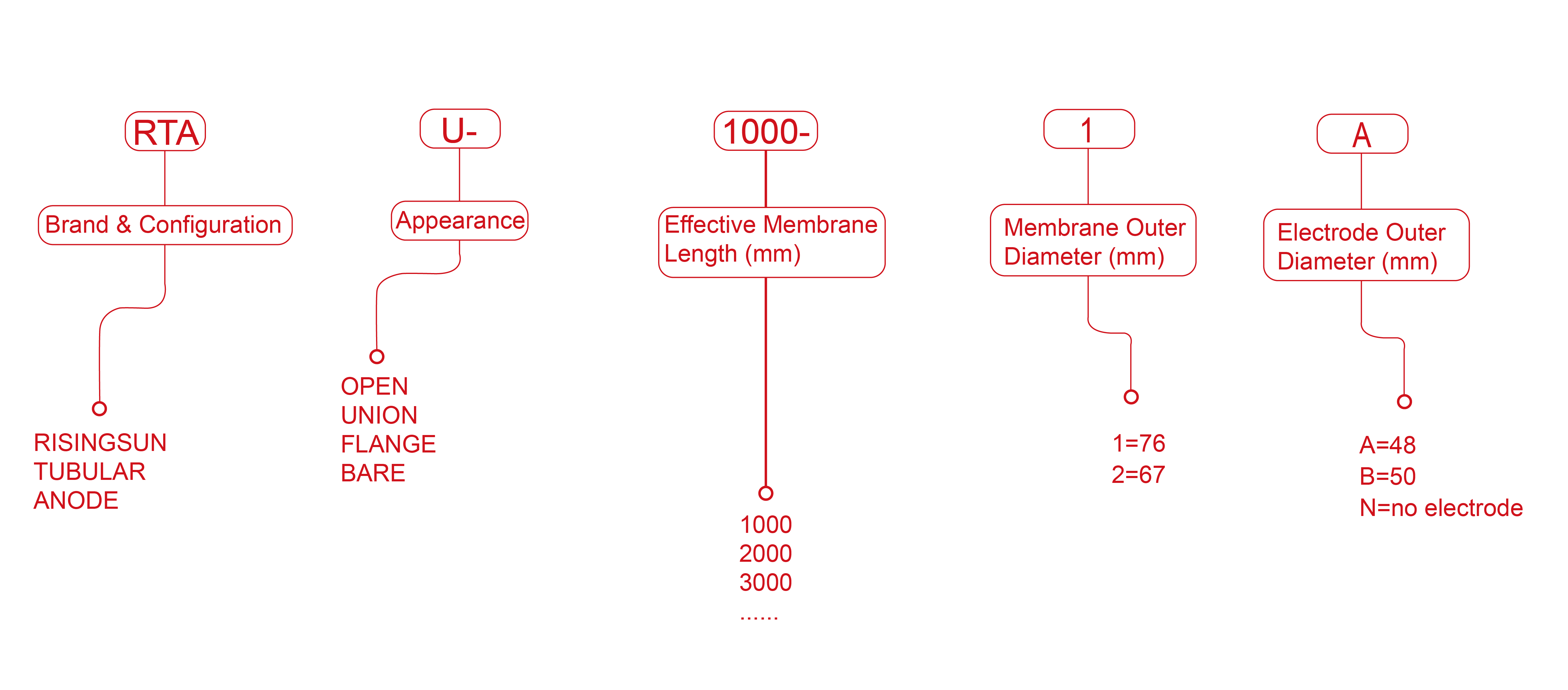

Product coding combination method：

*As customer's request, and the effective membrane length can reach 6000 mm

Detailed technical documents are available for download.

For custom solutions, please contact our technical team.

Email us at info@risingsunmem.com for expert support.

Product coding combination method：

*As customer's request, and the effective membrane length can reach 6000 mm
