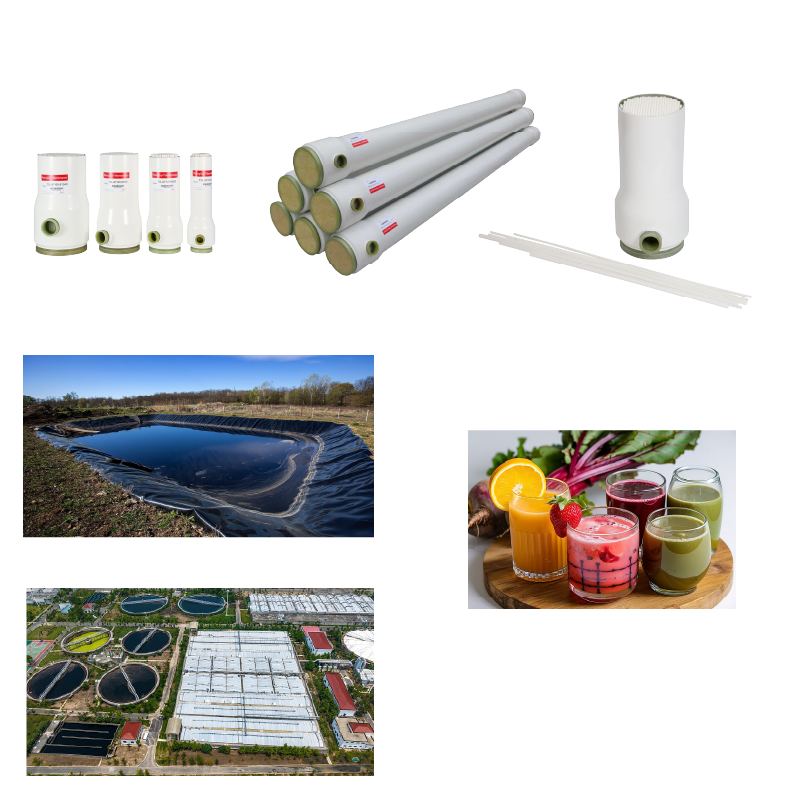

1、Tubular UF membrane, suitable for liquids with high viscosity or suspended solids.
2、Wide flow paths provide high clogging resistance.
3、External and separated filtration system.
4、Adjustable cross-flow velocity for optimal operation and extended service life.
5、Convenient cleaning, maintenance and operation under closed pipeline.
Membranes Development：
Membrane chemical materials∶PVDF、PES、PAN、PS
MWCO range∶5,000-250,000Da
Membrane inner tube diameter∶5-12.7mm
Membrane module standard diameter∶3", 4", 6", 8",10". Standard length：3m, 3.6m, 4m
For pilot testing module standard diameter∶1~3", Length: 0.5~1.5m。
We continue membrane chemical properties development to expand the range.
Now, we can offer robust, fouling resistance and antioxidant membrane (PVDF Max. Chlorine Exposure 250,000ppm.h), acid and alkali resistance (20%NaOH), Pure water flux can be 800LMH, Max.operation pressure is10bar and max. temperature is 95℃.
Even if the activated sludge concentration up to 40g/L, the membrane flux can be 70~150LMH for domestic waste water.
Typical Applications：
Difficult waste water fields
Landfill leachate pretreatment
Pretreatment for alkali liquor recycle
Special chemical waste water (Coking, Tannery, textile, wood pulp bleach) treatment
Return injection of produced water from oil field
Emulsified oil treatment
Specialty fields
Fruit juice and tea drinks clarification
Food and bio-pharmaceutical fermentation clarification
Detailed technical documents are available for download.
For custom solutions, please contact our technical team.
Email us at info@risingsunmem.com for expert support.
| Size | Membrane length(mm) | Component outer diameter(inch) | Membrane area(㎡) | Shell material |
| 8630 | 3000 | 6" | 15.2 | FRP |
| 8830 | 3000 | 8" | 27.2 | FRP |
| 8840 | 4000 | 8" | 36.7 | FRP |
| 81040 | 4000 | 10" | 53.4 | FRP |
| Size | Membrane length(mm) | Component outer diameter(inch) | Membrane area(㎡) | Shell material |
| 5630 | 3000 | 6" | 17.7 | FRP |
| 5830 | 3000 | 8" | 32.7 | FRP |
| 5840 | 4000 | 8" | 43.6 | FRP |
| 51040 | 4000 | 10" | 67.2 | FRP |
| Size | Membrane length(mm) | Component outer diameter(inch) | Membrane area(㎡) | Shell material |
| 10630 | 3000 | 6" | 12.1 | FRP |
| 10830 | 3000 | 8" | 21.2 | FRP |
| 10840 | 4000 | 8" | 28.2 | FRP |
| 101040 | 4000 | 10" | 39.4 | FRP |
| Size | Membrane length(mm) | Component outer diameter(inch) | Membrane area(㎡) | Shell material |
| 12336 | 3658 | 3" | 2.7 | PSU |
| 12436 | 3658 | 4.3" | 5.1 | PSU |
| Parameter | Unit | Membrane Material | |||||||
| PVDF | PAN | PES | |||||||
| Pore size/MWCO | Da | 100,000 | 15,000 | 50,000 | 0.1μm | 100,000 | 50,000 | 100,000 | 5,000 |
| Clean Water Flux | LMH100kpa | 800 | 50 | 150 | 600 | 350 | 200 | 25 | 15 |
| Operation Pressure | Kpa | -50~800-10~1000(HD) | -20~800-10~1000(HD) | ||||||
| Max Operation Temperatuee | ℃ | 65 | 65 | ||||||
| PH Range | / | 2~10,2~12(HD) | 2~10,2~12(HD) | ||||||
| Chloringe Exposure | ppm.h | 250,000 | 250,000 | ||||||
